QS-D-M-800 Spider Manipulator | Delta Robot for Assembly & Packing Line
Fast Dynamic Response
High Stiffness
High speed
High precision
The classic high-speed parallel robot configuration features translational movement along the XYZ axes in three-dimensional space and rotational movement around the Z axis. When paired with a high-precision machine vision system, it is suitable for high-speed production operations in industries such as food and medicines, primarily used for the assembly, handling, and sorting of light, small, and scattered materials.
I.Product Features
- Standard cycle time is less than 0.6s, meeting demands for both maximum speed and cost-effectiveness
- Easily copes with high-intensity and high-frequency repetitive movements
- Highly suitable for high-speed production operations in food and pharmaceutical industries
- Primarily used for assembly, handling, and sorting of small materials
II.Product Drawing
III.Product Parameters
| Model | Axle Count | Maximum Load | Workspace Width | Repeatable Positioning Accuracy | Maximum Exercise Frequency | Rotation Range | Active Arm Angle Range | Rated Power | Protection Level |
| QS-D-M-800 | 3+1 | 70KG | 800MM | ±0.05MM | 150pp/min | ±360° | 37°-65° | 2.35kw | IP55 |
IV.Areas of Application
Foods, Medicines, and related industries requiring high-speed automation solutions.
Agricultural and sideline products Medicines
Nutrition Dietry Supplement
Food Tea in small cans

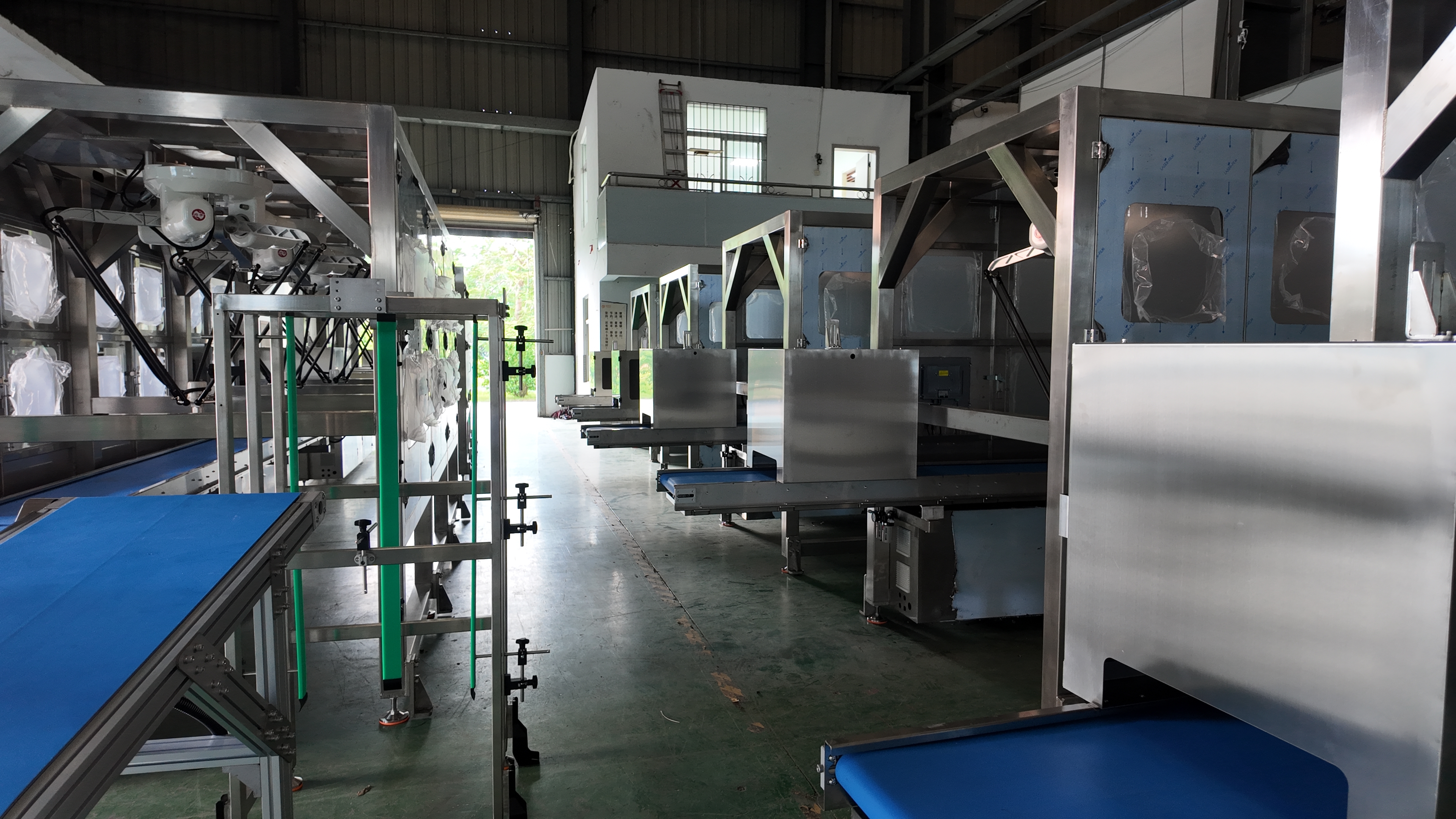

IV.Our workshop

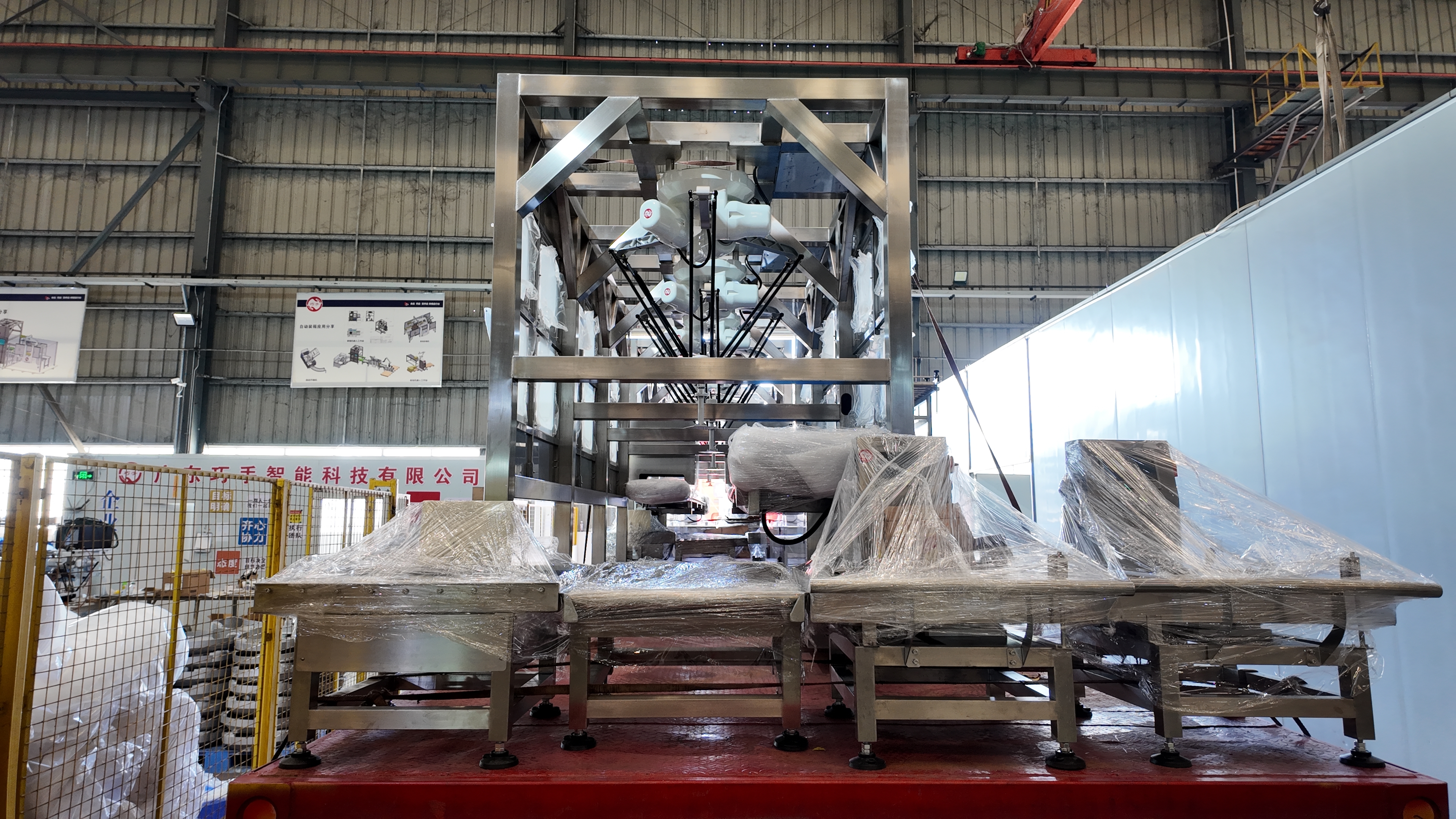

V.Shipping picture
IV.Why choose us
- More than 15 years' industry experience
- Specilised team
- Free solutions and on-site visits
- Standard German standard industrial plants are more worry-free
- Patents are well-prepared
A automatic carton erector A sorting robot A flexible gripper
A automatic forklift A automatic package A buffer feeding mechanism
machine feeding device for a noodle fork sorting
machine
6.After-sales service
- Overseas Technical Support
- Long-term Spare Parts Supply
- 12 Months Warranty
- On-site Installation & Training (Optional)
- Supports return policy
V.Our other more cost-effective service options
- You can opt for overall packaging automation solutions
VI.Why choose us
- More than 15 years' industry experience
- Specilised team
- Free solutions and on-site visits
- Standard German standard industrial plants are more worry-free
5.After-sales service
- Overseas Technical Support
- Long-term Spare Parts Supply
- 12 Months Warranty
- On-site Installation & Training (Optional)
- Supports return policy
VII.Supporting components and full set of solutions
- Parallel robots are rarely used alone; they are shown with supporting products to demonstrate one-stop service:
- - Standard: Dedicated control cabinet, control system, data cables, installation brackets
- - Optional: Vision positioning system, conveyor belt, loading and unloading mechanisms, safety fences
- - Layout: Listed with images and text, labeled 'Standard'/'Optional', with brief matching suggestions
- -Full set of solutions:Bagging machine, material feeding line, case opener, automatic packing machine, weighing mechanism, rejection mechanism, flap folding and sealing machine, automatic strapping machine, palletizer.
VIII.True sample case & Implemented project
Japan Food Factory|Packaging Automation overall Solution
Jordan Chemical Industry | Packaging Automation overall Solution
More Success Cases https://www.ecweb.com/website/file/case
X.FAQ
- Q1:How fast do your Delta robot run?
- Genaral speaking,the speed is 80-180PP/min,while it can be customised as you require.
- Q2:How strong is your company?
- A:We have our own patents and R&D team.And we provide customers with well-prepared pre-sales, in-site sale and after-sales service.Nisse bought our solution several years ago, but we still serve them fast.We have more than 70 employees.Our founder has been in this field for fifteen years.And our design director graduated from The Open University of China.And his major is machinery engineering.We have a CE certificete.Our famous customers are Nissin,Adolf,Daliyuan Food Group,Foshan Haitian Flavouring and Food Co.,Ltd.,etc..
- Q3:Are your products complete?
- Certainly!We can even provide packaging auto overall solutions.
